Wheatley, HP200-AM (217Q-4M), Quintuplex, Plunger Pump
- 217 horsepower 4 1/2" stroke horizontal quintuplex single acting plunger pump
- Available in three end materials
- Pump speeds up to 390 RPM
- Multiple accessory gear reduction unit ratios
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 1¾" |
| Maximum Plunger Diameter: | 2½" |
| Stroke length: | 4½" |
| Maximum Working Pressure: | 3,600 PSI |
| Rod/Piston Load: | 8800lb |
| Gallons per Minute: | 186.5 |
| Barrels per Day: | 6394 |
| Brake Horse Power: | 217.0 |

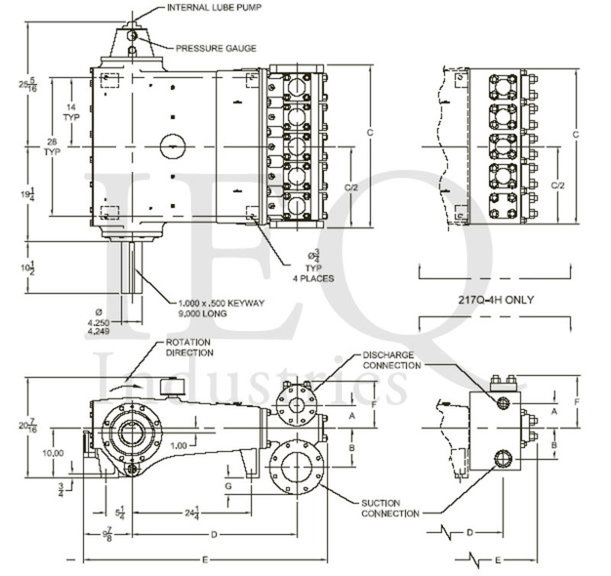

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 390 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| HP200-AM 217Q-4M | 2.500 | 4.9087 | 16.393 | 0.4781 | 1793 | 819.6 | 23.91 | 2459 | 71.72 | 4098 | 119.5 | 5737 | 167.3 | 6393 | 186.5 |
| 2.375 | 4.4301 | 14.795 | 0.4315 | 1986 | 739.7 | 21.58 | 2219 | 64.73 | 3699 | 107.9 | 5178 | 151.0 | 5770 | 168.3 | |
| 2.250 | 3.9761 | 13.278 | 0.3873 | 2213 | 663.9 | 19.36 | 1992 | 58.09 | 3320 | 96.82 | 4647 | 135.5 | 5178 | 151.0 | |
| 2.125 | 3.5466 | 11.844 | 0.3454 | 2481 | 592.2 | 17.27 | 1777 | 51.82 | 2961 | 86.36 | 4145 | 120.9 | 4619 | 134.7 | |
| 2.000 | 3.1416 | 10.491 | 0.3060 | 2801 | 524.6 | 15.3 | 1574 | 45.9 | 2623 | 76.5 | 3672 | 107.1 | 4092 | 119.3 | |
| 1.875 | 2.7612 | 9.221 | 0.2689 | 3187 | 461.0 | 13.45 | 1383 | 40.34 | 2305 | 67.24 | 3227 | 94.13 | 3596 | 104.9 | |
| 1.750 | 2.4053 | 8.032 | 0.2343 | 3659 | 401.6 | 11.71 | 1205 | 35.14 | 2008 | 58.57 | 2811 | 82.0 | 3133 | 91.37 | |
- Cast iron power frame
- Ductile Iron Crankshaft
- Heavy-duty, Tapered Roller Crankshaft Bearings
- Precision Type, Aluminum Alloy Crankpin Bearings
- Stainless Steel Extension Rods
- Internal Pressure Lubrication
- Ductile Iron Connecting Rods
- Alloy Steel Crosshead Pins
- Bronze Bearing Crosshead Pin Bushings
- Cast Iron Crossheads with upper/lower oil grooves
- Rated Rod Load is 8800 lbs.
- Bolted Valve Covers
- Integral Stuffing Boxes & Glands
