Gaso, 2652, Duplex, Piston Pump (Mud Pump)
- 258 horsepower 12" stroke continuous duty double acting duplex pump
- Rated at pump speeds up to 85 RPM
- Maximum discharge pressures up to 1,125 psi
- Equipped with cast steel fluid end
- Equipped with internal gear reduction unit
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | duplex |
| Minimum Piston Diameter: | 4" |
| Maximum Piston Diameter: | 7¼" |
| Stroke length: | 12" |
| Maximum Working Pressure: | 1,760 PSI |
| Rod/Piston Load: | 22100lb |
| Gallons per Minute: | 702.0 |
| Barrels per Day: | 24070 |
| Brake Horse Power: | 243.6 |

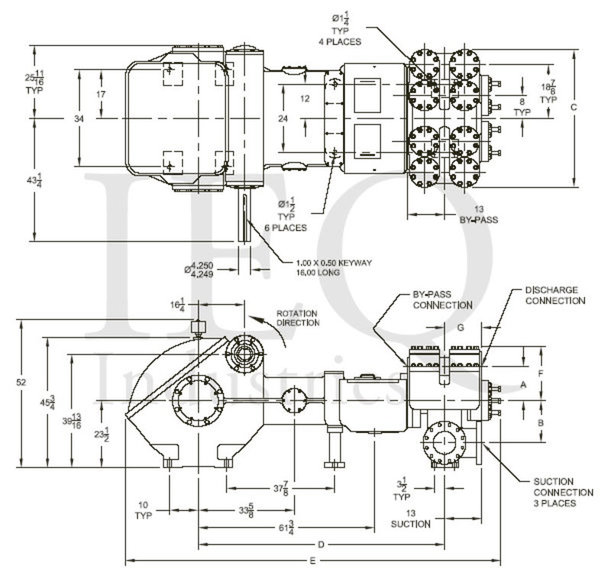

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 60 RPM | 70 RPM | 80 RPM | 85 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 2652 | 7.250 | 41.2825 | 294.109 | 8.5782 | 535 | 14710 | 428.9 | 17650 | 514.7 | 20590 | 600.5 | 23530 | 686.3 | 25000 | 729.1 |
| 7.000 | 38.4845 | 274.175 | 7.9968 | 574 | 13710 | 399.8 | 16450 | 479.8 | 19190 | 559.8 | 21930 | 639.7 | 23300 | 679.7 | |
| 6.500 | 33.1831 | 236.406 | 6.8952 | 666 | 11820 | 344.8 | 14180 | 413.7 | 16550 | 482.7 | 18910 | 551.6 | 20090 | 586.1 | |
| 6.000 | 28.2743 | 201.435 | 5.8752 | 782 | 10070 | 293.8 | 12090 | 352.5 | 14100 | 411.3 | 16110 | 470.0 | 17120 | 499.4 | |
| 5.500 | 23.7583 | 169.261 | 4.9368 | 930 | 8463 | 246.8 | 10160 | 296.2 | 11850 | 345.6 | 13540 | 394.9 | 14390 | 419.6 | |
| 5.000 | 19.6350 | 139.885 | 4.0800 | 1126 | 6994 | 204.0 | 8393 | 244.8 | 9792 | 285.6 | 11190 | 326.4 | 11890 | 346.8 | |
| 4.500 | 15.9043 | 113.307 | 3.3048 | 1390 | 5665 | 165.2 | 6798 | 198.3 | 7932 | 231.3 | 9065 | 264.4 | 9631 | 280.9 | |
| 4.000 | 12.5664 | 89.527 | 2.6112 | 1759 | 4476 | 130.6 | 5372 | 156.7 | 6267 | 182.8 | 7162 | 208.9 | 7610 | 222.0 | |
Power End Features:
- Cast iron power frame
- Steel crankshaft
- Bi-metal crankpin bearings
- Ductile iron connecting rods
- Heavy-duty roller crankshaft bearings
- Alloy steel crosshead pins
- Bronze bearing crosshead pin bushings
- Internal gear reduction / 5.05:1/Ratio/ with:
- Ductile iron herringbone type main gear
- Allow steel pinion shaft with herringbone pinion gear
- Heavy-duty roller pinion shaft bearings
- Flooded sump, splash distribution and lubrication
- Cast iron crossheads with upper/lower oil grooves
- Rated rod load is 22100 lbs.
Fluid End Features:
- Bolted Valve and Cylinder head covers
- Bolted or threaded type glands & removable stuffing boxes
- File hard steel piston rods
- Standard valve types
- For crude oil transfer:
- Steel wing guided valve & seat
- For slush / mud service:
- Steel wing guided with replaceable insert
- Standard Valve Types:
- For crude oil transfer:
- Cast iron piston body, ring type
- Cast iron, chrome faced, piston rings
- For slush / mud service:
- Mission slush type piston w/ replaceable rubbers
- General service piston rod packing
