Wheatley, 5P-200A (31Q-2L), Quintuplex, Plunger Pump
- 31 horsepower 2 1/4" stroke horizontal quintuplex single acting plunger pump
- Available in four different fluid end materials
- Pump speeds up to 490 RPM
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 1⅛" |
| Maximum Plunger Diameter: | 1¾" |
| Stroke length: | 2¼" |
| Maximum Working Pressure: | 2,050 PSI |
| Rod/Piston Load: | 2030lb |
| Gallons per Minute: | 57.4 |
| Barrels per Day: | 1968 |
| Brake Horse Power: | 31.4 |

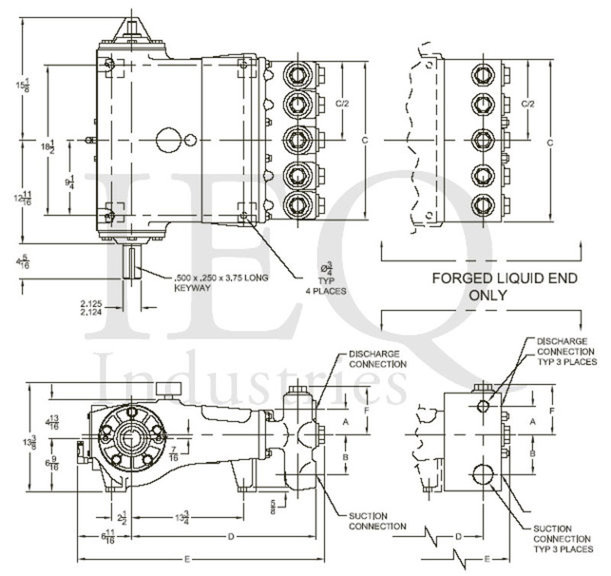

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 200 RPM | 350 RPM | 490 RPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 5P-200A 31Q-2L | 1.750 | 2.4053 | 4.016 | 0.1171 | 844 | 200.8 | 5.857 | 803.2 | 23.43 | 1406 | 41.0 | 1968 | 57.4 |
| 1.625 | 2.0739 | 3.463 | 0.1010 | 979 | 173.1 | 5.05 | 692.6 | 20.2 | 1212 | 35.35 | 1697 | 49.49 | |
| 1.500 | 1.7671 | 2.951 | 0.0861 | 1149 | 147.5 | 4.303 | 590.1 | 17.21 | 1033 | 30.12 | 1446 | 42.17 | |
| 1.375 | 1.4849 | 2.479 | 0.0723 | 1367 | 124.0 | 3.616 | 495.9 | 14.46 | 867.8 | 25.31 | 1215 | 35.43 | |
| 1.250 | 1.2272 | 2.049 | 0.0598 | 1654 | 102.5 | 2.988 | 409.8 | 11.95 | 717.2 | 20.92 | 1004 | 29.29 | |
| 1.125 | 0.9940 | 1.660 | 0.0484 | 2042 | 82.99 | 2.421 | 332.0 | 9.682 | 580.9 | 16.94 | 813.3 | 23.72 | |
Power End Features:
- Cast iron power frame
- Heavy-duty roller crankshaft bearings
- Precision type, aluminum alloy crankpin bearings
- Cast iron connecting rods
- Alloy steel crosshead pins
- Ductile Iron crankshaft with ground journals & polished throws
- Bronze bearing crosshead pin bushings
- Cast iron crossheads with upper/lower oil grooves
- One Piece Plungers
- Flooded sump, splash distribution lubrication
- Rated rod load is 2030 lbs.
Fluid End Features:
- Threaded Valve Covers - (CDI & CDPLX)
- Bolted Valve covers -(NAB & PSTL)
- Threaded type glands and integral stuffing boxes
- Bronze stuffing box bushings and packing followers
- Plungers - Solid Ceramic, or Tungsten coated
- General service plunger packing
- Optional flanged connections available (Adder section)
- Spherical suction and discharge valves
- Valve Seat & Valve Body: Nitronic 50
- Spring: Inconel
- Cage: 316L Stainless Steel
- Severe duty valves with inserts available
- Threaded suction and discharge connections
