Wheatley, P100-H (11D-2H), Duplex, Plunger Pump
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | duplex |
| Minimum Plunger Diameter: | ¾" |
| Maximum Plunger Diameter: | 1" |
| Stroke length: | 2 3/16" |
| Maximum Working Pressure: | 4,595 PSI |
| Rod/Piston Load: | 2030lb |
| Gallons per Minute: | 5.9 |
| Barrels per Day: | 202 |
| Brake Horse Power: | 11.0 |

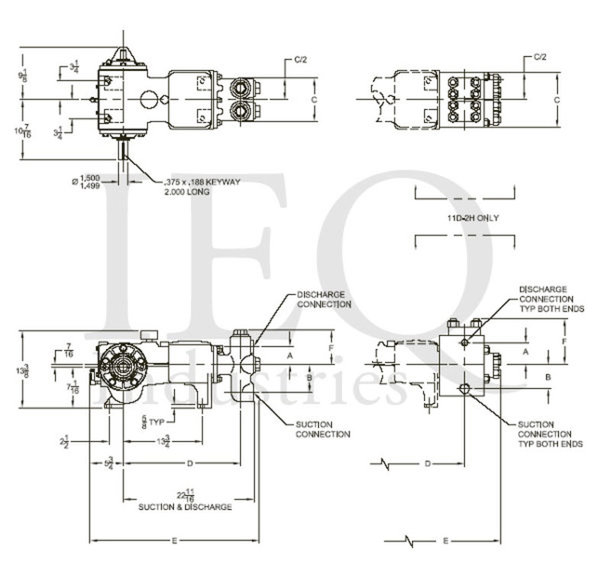

Mouse-over to Enlarge
- Pump Curves
- Performance Data Table
- Features/benefits not available.
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 400 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| P100-ALS 11D-2L | 2.000 | 3.1416 | 2.040 | 0.0595 | 646 | 102.0 | 2.975 | 306.0 | 8.925 | 510.0 | 14.87 | 714.0 | 20.82 | 816.0 | 23.8 |
| 1.875 | 2.7612 | 1.793 | 0.0523 | 735 | 89.65 | 2.615 | 268.9 | 7.844 | 448.2 | 13.07 | 627.5 | 18.3 | 717.2 | 20.92 | |
| 1.750 | 2.4053 | 1.562 | 0.0456 | 844 | 78.09 | 2.278 | 234.3 | 6.833 | 390.5 | 11.39 | 546.7 | 15.94 | 624.7 | 18.22 | |
| 1.625 | 2.0739 | 1.347 | 0.0393 | 979 | 67.34 | 1.964 | 202.0 | 5.892 | 336.7 | 9.82 | 471.4 | 13.75 | 538.7 | 15.71 | |
| 1.500 | 1.7671 | 1.147 | 0.0335 | 1149 | 57.37 | 1.673 | 172.1 | 5.02 | 286.9 | 8.367 | 401.6 | 11.71 | 459.0 | 13.39 | |
| P100-A 11D-2M | 1.750 | 2.4053 | 1.562 | 0.0456 | 844 | 78.09 | 2.278 | 234.3 | 6.833 | 390.5 | 11.39 | 546.7 | 15.94 | 624.7 | 18.22 |
| 1.625 | 2.0739 | 1.347 | 0.0393 | 979 | 67.34 | 1.964 | 202.0 | 5.892 | 336.7 | 9.82 | 471.4 | 13.75 | 538.7 | 15.71 | |
| 1.500 | 1.7671 | 1.147 | 0.0335 | 1149 | 57.37 | 1.673 | 172.1 | 5.02 | 286.9 | 8.367 | 401.6 | 11.71 | 459.0 | 13.39 | |
| 1.375 | 1.4849 | 0.964 | 0.0281 | 1367 | 48.21 | 1.406 | 144.6 | 4.218 | 241.1 | 7.031 | 337.5 | 9.843 | 385.7 | 11.25 | |
| 1.250 | 1.2272 | 0.797 | 0.0232 | 1654 | 39.84 | 1.162 | 119.5 | 3.486 | 199.2 | 5.811 | 278.9 | 8.135 | 318.7 | 9.297 | |
| 1.125 | 0.9940 | 0.645 | 0.0188 | 2042 | 32.27 | 0.941 | 96.82 | 2.824 | 161.4 | 4.707 | 225.9 | 6.589 | 258.2 | 7.53 | |
| P100-H 11D-2H | 1.000 | 0.7854 | 0.510 | 0.0149 | 2585 | 25.5 | 0.744 | 76.5 | 2.231 | 127.5 | 3.719 | 178.5 | 5.206 | 204.0 | 5.95 |
| 0.875 | 0.6013 | 0.390 | 0.0114 | 3376 | 19.52 | 0.569 | 58.57 | 1.708 | 97.62 | 2.847 | 136.7 | 3.986 | 156.2 | 4.555 | |
| 0.750 | 0.4418 | 0.287 | 0.0084 | 4595 | 14.34 | 0.418 | 43.03 | 1.255 | 71.72 | 2.092 | 100.4 | 2.929 | 114.7 | 3.347 | |
