Gaso, 1550-C, Duplex, Piston Pump (Mud Pump)
- 74 horsepower 10" stroke continuous duty double acting duplex pump
- Rated at pump speeds up to 85 RPM
- Maximum discharge pressures up to 1400 psi
- Equipped with cast iron fluid ends
- Equipped with internal gear reduction unit
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | duplex |
| Minimum Piston Diameter: | 2½" |
| Maximum Piston Diameter: | 5" |
| Stroke length: | 10" |
| Maximum Working Pressure: | 1,320 PSI |
| Rod/Piston Load: | 6520lb |
| Gallons per Minute: | 282.0 |
| Barrels per Day: | 9669 |
| Brake Horse Power: | 58.5 |

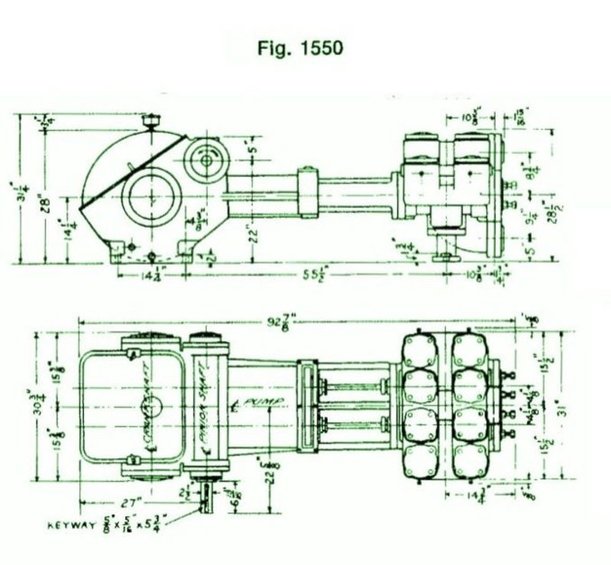

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 60 RPM | 70 RPM | 80 RPM | 85 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 1550-C | 5.000 | 19.6350 | 116.571 | 3.4000 | 332 | 5829 | 170.0 | 6994 | 204.0 | 8160 | 238.0 | 9326 | 272.0 | 9909 | 289.0 |
| 4.750 | 17.7205 | 105.205 | 3.0685 | 368 | 5260 | 153.4 | 6312 | 184.1 | 7364 | 214.8 | 8416 | 245.5 | 8942 | 260.8 | |
| 4.500 | 15.9043 | 94.423 | 2.7540 | 410 | 4721 | 137.7 | 5665 | 165.2 | 6610 | 192.8 | 7554 | 220.3 | 8026 | 234.1 | |
| 4.250 | 14.1863 | 84.223 | 2.4565 | 460 | 4211 | 122.8 | 5053 | 147.4 | 5896 | 172.0 | 6738 | 196.5 | 7159 | 208.8 | |
| 4.000 | 12.5664 | 74.606 | 2.1760 | 519 | 3730 | 108.8 | 4476 | 130.6 | 5222 | 152.3 | 5968 | 174.1 | 6341 | 185.0 | |
| 3.750 | 11.0447 | 65.571 | 1.9125 | 590 | 3279 | 95.62 | 3934 | 114.7 | 4590 | 133.9 | 5246 | 153.0 | 5574 | 162.6 | |
| 3.500 | 9.6211 | 57.120 | 1.6660 | 678 | 2856 | 83.3 | 3427 | 99.96 | 3998 | 116.6 | 4570 | 133.3 | 4855 | 141.6 | |
| 3.250 | 8.2958 | 49.251 | 1.4365 | 786 | 2463 | 71.82 | 2955 | 86.19 | 3448 | 100.6 | 3940 | 114.9 | 4186 | 122.1 | |
| 3.000 | 7.0686 | 41.966 | 1.2240 | 922 | 2098 | 61.2 | 2518 | 73.44 | 2938 | 85.68 | 3357 | 97.92 | 3567 | 104.0 | |
| 2.750 | 5.9396 | 35.263 | 1.0285 | 1098 | 1763 | 51.42 | 2116 | 61.71 | 2468 | 71.99 | 2821 | 82.28 | 2997 | 87.42 | |
| 2.500 | 4.9087 | 29.143 | 0.8500 | 1328 | 1457 | 42.5 | 1749 | 51.0 | 2040 | 59.5 | 2331 | 68.0 | 2477 | 72.25 | |
Power End Features
- Cast iron power frame
- Steel crankshaft
- Heavy-duty roller crankshaft bearings
- Bi-metal crankpin bearings
- Ductile iron connecting rods
- Allow steel crosshead pins
- Bronze bearing crosshead pin bushings
Internal gear reduction / 5.920:1 Ratio / with:
- Ductile iron herringbone type main gear
- Allow steel pinion shaft with herringbone pinion gear
- Heavy-duty roller pinion shaft bearings
- Flooded sump, splash distribution lubrication
- Cast iron crossheads with upper/lower oil grooves
- Rated rod load is 7475 lbs.
Fluid End Features
- Bolted Valve and cylinder head covers
- Bolted or threaded type glands & removable stuffing boxes
- File Hard Steel Piston Rods
- Standard Valve Types:
- For crude oil transfer:
- Steel wing guided valve & seat
- For slush / mud service:
- Steel wing guided with replaceable insert
- Standard Piston Types:
- For crude oil transfer:
- Cast iron piston body, ring type
- Cast iron, chrome faced, piston rings
- For slush / mud service:
- Mission mud type piston w/replaceable rubbers
- General service rod packing
