Gaso, 1847-A, Duplex, Piston Pump (Mud Pump)
- 33 horsepower 6" stroke continuous duty double acting duplex pump
- Rated at pump speeds up to 100 RPM
- Maximum discharge pressures up to 990 psi
- Equipped with cast iron or cast steel fluid ends
- Equipped with internal gear reduction unit
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | duplex |
| Minimum Piston Diameter: | 2½" |
| Maximum Piston Diameter: | 4½" |
| Stroke length: | 6" |
| Maximum Working Pressure: | 990 PSI |
| Rod/Piston Load: | 4850lb |
| Gallons per Minute: | 160.0 |
| Barrels per Day: | 5486 |
| Brake Horse Power: | 31.0 |

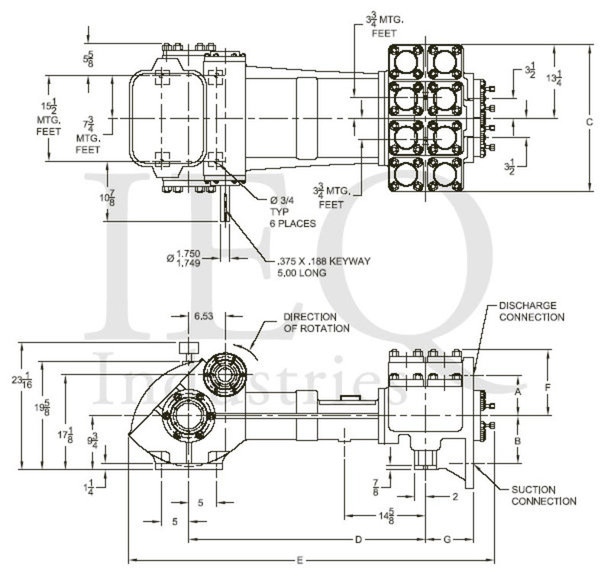

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 60 RPM | 70 RPM | 80 RPM | 90 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| 1847-A | 4.500 | 15.9043 | 56.654 | 1.6524 | 305 | 2833 | 82.62 | 3399 | 99.14 | 3966 | 115.7 | 4532 | 132.2 | 5099 | 148.7 |
| 4.250 | 14.1863 | 50.534 | 1.4739 | 342 | 2527 | 73.69 | 3032 | 88.43 | 3537 | 103.2 | 4043 | 117.9 | 4548 | 132.7 | |
| 4.000 | 12.5664 | 44.763 | 1.3056 | 386 | 2238 | 65.28 | 2686 | 78.34 | 3133 | 91.39 | 3581 | 104.4 | 4029 | 117.5 | |
| 3.750 | 11.0447 | 39.343 | 1.1475 | 439 | 1967 | 57.37 | 2361 | 68.85 | 2754 | 80.32 | 3147 | 91.8 | 3541 | 103.3 | |
| 3.500 | 9.6211 | 34.272 | 0.9996 | 504 | 1714 | 49.98 | 2056 | 59.98 | 2399 | 69.97 | 2742 | 79.97 | 3084 | 89.96 | |
| 3.250 | 8.2958 | 29.551 | 0.8619 | 585 | 1478 | 43.09 | 1773 | 51.71 | 2069 | 60.33 | 2364 | 68.95 | 2660 | 77.57 | |
| 3.000 | 7.0686 | 25.179 | 0.7344 | 686 | 1259 | 36.72 | 1511 | 44.06 | 1763 | 51.41 | 2014 | 58.75 | 2266 | 66.1 | |
| 2.750 | 5.9396 | 21.158 | 0.6171 | 817 | 1058 | 30.85 | 1269 | 37.03 | 1481 | 43.2 | 1693 | 49.37 | 1904 | 55.54 | |
| 2.500 | 4.9087 | 17.486 | 0.5100 | 988 | 874.3 | 25.5 | 1049 | 30.6 | 1224 | 35.7 | 1399 | 40.8 | 1574 | 45.9 | |
Power End Features
- Cast iron power frame
- Ductile iron crankshaft
- Heavy-duty roller crankshaft bearings
- Bi-metal crankpin bearings
- Ductile iron connecting rods
- Alloy steel crosshead pins
- Bronze bearing crosshead pin bushings
- Internal gear reduction / 5.100:1 Ratio / with
- Ductile iron herringbone type main gear
- Alloy steel pinion shaft with herringbone pinion gear
- Heavy-duty roller pinion shaft bearings
- Flooded sump, splash distribution lubrication
- Rated rod load is 4850 lbs
- Cast iron crossheads with upper/lower oil grooves
Fluid End Features
- Bolted Valve and Cylinder Head Covers
- Bolted valve and cylinder head covers
- Bolted or threaded type glands and removable stuffing boxes
- File hard steel piston rods
- Standard valve types
- For crude oil transfer:
- Steel wing guided valve and seat
- For slush/mud service:
- Steel wing guided with replaceable insert
- Standard Piston Types
- For crude oil transfer:
- Cast iron piston body, ring type
- Cast iron, chrome faced, piston rings
- For slush/mud service:
- Mission slush type piston w/ replaceable rubbers
- General service piston rod packing
