Wheatley, HP600-H (543Q-7H), Quintuplex, Plunger Pump
- 543 horsepower 7 1/8" stroke horizontal quintuplex single acting plunger pump
- Available in two fluid end materials
- Pump speeds up to 280 RPMÂ Â

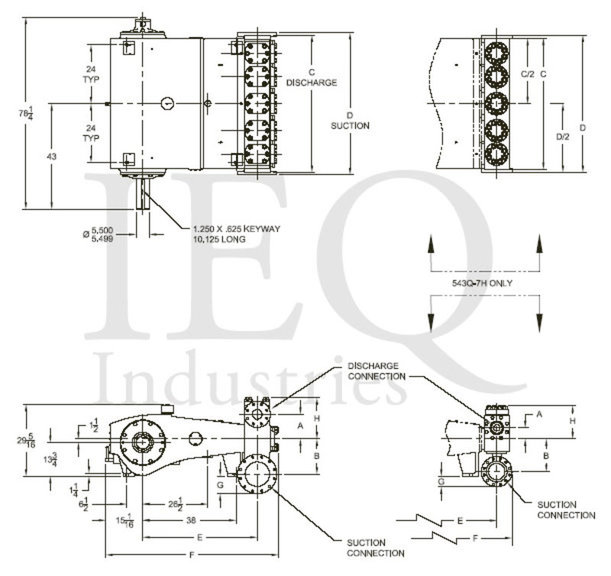

Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 1¾" |
| Maximum Plunger Diameter: | 2⅛" |
| Stroke length: | 7⅛" |
| Maximum Working Pressure: | 6,170 PSI |
| Rod/Piston Load: | 19400lb |
| Gallons per Minute: | 153.1 |
| Barrels per Day: | 5249 |
| Brake Horse Power: | 543.0 |
Mouse-over to Enlarge
Hover over Power Curves to reveal RPM and GPM
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 280 RPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| HP600-H 543Q-7H | 2.125 | 3.5466 | 18.753 | 0.5470 | 5470 | 938 | 27 | 2813 | 82 | 4688 | 137 | 5251 | 153 |
| 2.000 | 3.1416 | 16.611 | 0.4845 | 6170 | 831 | 24 | 2492 | 73 | 4153 | 121 | 4651 | 136 | |
| 1.875 | 2.7612 | 14.600 | 0.4258 | 6170 | 730 | 21 | 2190 | 64 | 3650 | 106 | 4088 | 119 | |
| 1.750 | 2.4053 | 12.718 | 0.3709 | 6170 | 636 | 19 | 1908 | 56 | 3180 | 93 | 3561 | 104 | |
- Cast iron power frame
- Ductile Iron crankshaft
- Heavy-duty, tapered roller crankshaft bearings
- Precision type, aluminum alloy crankpin bearings
- Ductile iron connecting rods
- Roller Type Center Main Bearings
- Alloy steel crosshead pins
- Bronze bearing crosshead pin bushings
- Cast iron crossheads with upper/lower oil grooves
- Stainless steel extension rods
- Internal pressure lubrication
- Rated rod load is 19400 lbs.
- Bolted Type Valve Covers
- Removable Stuffing Boxes & Glands
- Plungers - Solid Ceramic, or Tungsten coated Â
