Wheatley, Q3115-AL (103Q-3L), Quintuplex, Plunger Pump
- 103 horsepower 3 1/2" stroke horizontal quintuplex single acting plunger pump
- Available in four fluid end materials
- Pump speeds up to 435 RPM
- Four accessory gear reduction unit ratios
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 2½" |
| Maximum Plunger Diameter: | 3" |
| Stroke length: | 3½" |
| Maximum Working Pressure: | 970 PSI |
| Rod/Piston Load: | 4760lb |
| Gallons per Minute: | 232.9 |
| Barrels per Day: | 7985 |
| Brake Horse Power: | 102.0 |

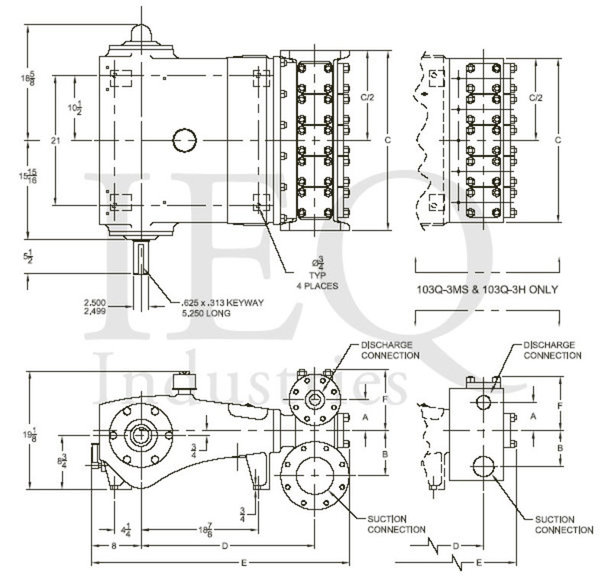

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 435 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| Q3115-AL 103Q-3L | 3.000 | 7.0686 | 18.360 | 0.5355 | 673 | 918.0 | 26.77 | 2754 | 80.32 | 4590 | 133.9 | 6426 | 187.4 | 7987 | 232.9 |
| 2.875 | 6.4918 | 16.862 | 0.4918 | 733 | 843.1 | 24.59 | 2529 | 73.77 | 4215 | 123.0 | 5902 | 172.1 | 7335 | 213.9 | |
| 2.750 | 5.9396 | 15.427 | 0.4500 | 801 | 771.4 | 22.5 | 2314 | 67.5 | 3857 | 112.5 | 5400 | 157.5 | 6711 | 195.7 | |
| 2.625 | 5.4119 | 14.057 | 0.4100 | 880 | 702.8 | 20.5 | 2109 | 61.5 | 3514 | 102.5 | 4920 | 143.5 | 6115 | 178.3 | |
| 2.500 | 4.9087 | 12.750 | 0.3719 | 970 | 637.5 | 18.59 | 1912 | 55.78 | 3187 | 92.97 | 4462 | 130.2 | 5546 | 161.8 | |
- Cast iron power frame
- Ductile Iron Crankshaft
- Cast iron crossheads with upper/lower oil grooves
- Flooded sump, splash distribution lubrication
- Ductile iron connecting rods
- Alloy steel crosshead pins
- Bronze bearing crosshead pin bushings
- Cast iron crossheads with upper/lower oil grooves
- Rated rod load is 4760 lbs
