Wheatley, Q3115-AM (103Q-3M), Quintuplex, Plunger Pump
- 103 horsepower 3 1/2" stroke horizontal quintuplex single acting plunger pump
- Available in four fluid end materials
- Pump speeds up to 435 RPM
- Four accessory gear reduction unit ratios
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 1⅝" |
| Maximum Plunger Diameter: | 2½" |
| Stroke length: | 3½" |
| Maximum Working Pressure: | 2,295 PSI |
| Rod/Piston Load: | 4760lb |
| Gallons per Minute: | 161.8 |
| Barrels per Day: | 5547 |
| Brake Horse Power: | 102.0 |

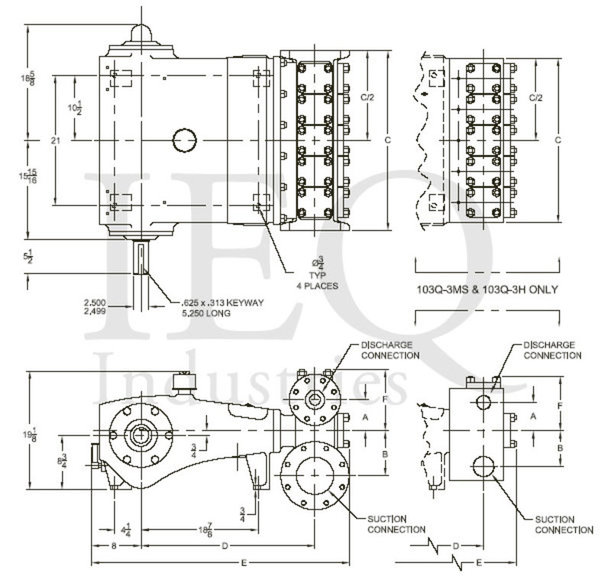

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 435 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| Q3115-AM 103Q-3M | 2.500 | 4.9087 | 12.750 | 0.3719 | 970 | 637.5 | 18.59 | 1912 | 55.78 | 3187 | 92.97 | 4462 | 130.2 | 5546 | 161.8 |
| 2.375 | 4.4301 | 11.507 | 0.3356 | 1074 | 575.3 | 16.78 | 1726 | 50.34 | 2877 | 83.9 | 4027 | 117.5 | 5005 | 146.0 | |
| 2.250 | 3.9761 | 10.327 | 0.3012 | 1197 | 516.4 | 15.06 | 1549 | 45.18 | 2582 | 75.3 | 3615 | 105.4 | 4492 | 131.0 | |
| 2.125 | 3.5466 | 9.212 | 0.2687 | 1342 | 460.6 | 13.43 | 1382 | 40.3 | 2303 | 67.17 | 3224 | 94.04 | 4007 | 116.9 | |
| 2.000 | 3.1416 | 8.160 | 0.2380 | 1515 | 408.0 | 11.9 | 1224 | 35.7 | 2040 | 59.5 | 2856 | 83.3 | 3550 | 103.5 | |
| 1.875 | 2.7612 | 7.172 | 0.2092 | 1724 | 358.6 | 10.46 | 1076 | 31.38 | 1793 | 52.29 | 2510 | 73.21 | 3120 | 90.99 | |
| 1.750 | 2.4053 | 6.247 | 0.1822 | 1979 | 312.4 | 9.111 | 937.1 | 27.33 | 1562 | 45.55 | 2187 | 63.78 | 2718 | 79.26 | |
| 1.625 | 2.0739 | 5.387 | 0.1571 | 2295 | 269.3 | 7.856 | 808.0 | 23.57 | 1347 | 39.28 | 1885 | 54.99 | 2343 | 68.35 | |
- Cast iron power frame
- Ductile Iron Crankshaft
- Cast iron crossheads with upper/lower oil grooves
- Flooded sump, splash distribution lubrication
- Ductile iron connecting rods
- Alloy steel crosshead pins
- Bronze bearing crosshead pin bushings
- Cast iron crossheads with upper/lower oil grooves
- Rated rod load is 4760 lbs
