Gaso, T140-4 (133T-4L), Triplex, Plunger Pump
- 133 horsepower 4 1/2" stroke horizontal triplex single acting plunger pump
- Available in three fluid end materials
- Pump speeds up to 400 RPM
- Multiple gear reduction unit ratios
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | triplex |
| Minimum Plunger Diameter: | 2⅝" |
| Maximum Plunger Diameter: | 3⅜" |
| Stroke length: | 4½" |
| Maximum Working Pressure: | 1,440 PSI |
| Rod/Piston Load: | 8800lb |
| Gallons per Minute: | 209.1 |
| Barrels per Day: | 7169 |
| Brake Horse Power: | 133.0 |

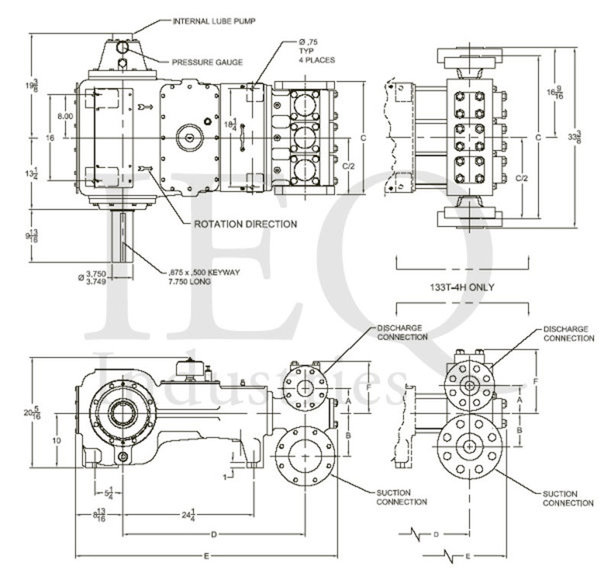

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 400 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| T140-4 133T-4L | 3.375 | 8.9462 | 17.926 | 0.5228 | 984 | 896.3 | 26.14 | 2689 | 78.42 | 4481 | 130.7 | 6274 | 183.0 | 7170 | 209.1 |
| 3.250 | 8.2958 | 16.622 | 0.4848 | 1061 | 831.1 | 24.24 | 2493 | 72.72 | 4156 | 121.2 | 5818 | 169.7 | 6649 | 193.9 | |
| 3.125 | 7.6699 | 15.368 | 0.4482 | 1147 | 768.4 | 22.41 | 2305 | 67.24 | 3842 | 112.1 | 5379 | 156.9 | 6147 | 179.3 | |
| 3.000 | 7.0686 | 14.163 | 0.4131 | 1245 | 708.2 | 20.65 | 2125 | 61.96 | 3541 | 103.3 | 4957 | 144.6 | 5665 | 165.2 | |
| 2.875 | 6.4918 | 13.008 | 0.3794 | 1356 | 650.4 | 18.97 | 1951 | 56.91 | 3252 | 94.85 | 4553 | 132.8 | 5203 | 151.8 | |
| 2.750 | 5.9396 | 11.901 | 0.3471 | 1482 | 595.1 | 17.36 | 1785 | 52.07 | 2975 | 86.78 | 4165 | 121.5 | 4760 | 138.8 | |
| 2.625 | 5.4119 | 10.844 | 0.3163 | 1626 | 542.2 | 15.81 | 1627 | 47.44 | 2711 | 79.07 | 3795 | 110.7 | 4338 | 126.5 | |
- Cast iron power frame
- Forged Steel Crankshaft
- Heavy-duty, tapered roller crankshaft bearings
- Precision type, aluminum alloy crankpin bearings
- Ductile iron connecting rods
- Minimum pump speed is 150 with standard power end construction
- Bronze bearing crosshead pin bushings
- Cast iron crossheads with upper/lower oil grooves
- Stainless steel extension rods
- Internal pressure lubrication
- Alloy steel crosshead pins
- Rated rod load is 8800 lbs.
- Plungers - Solid Ceramic, or Tungsten coated
- Spherical suction and discharge valves
- Valve Seat & Valve Body: Nitronic 50
- Spring: Inconel
- Cage: 316L Stainless Steel
- Severe duty valves with inserts available
