Wheatley, T225-M (22T-2M), Triplex, Plunger Pump

  • 22 horsepower 2 1/4" stroke horizontal duplex single acting plunger pump
  • Available in four different fluid end materials
  • Pump speeds up to 465 RPM

Specs

Spec U.S. Standard
Type: triplex
Minimum Plunger Diameter: 1⅛"
Maximum Plunger Diameter: 1¾"
Stroke length: 2¼"
Maximum Working Pressure: 2,565 PSI
Rod/Piston Load: 2550lb
Gallons per Minute: 32.7
Barrels per Day: 1121
Brake Horse Power: 22.0

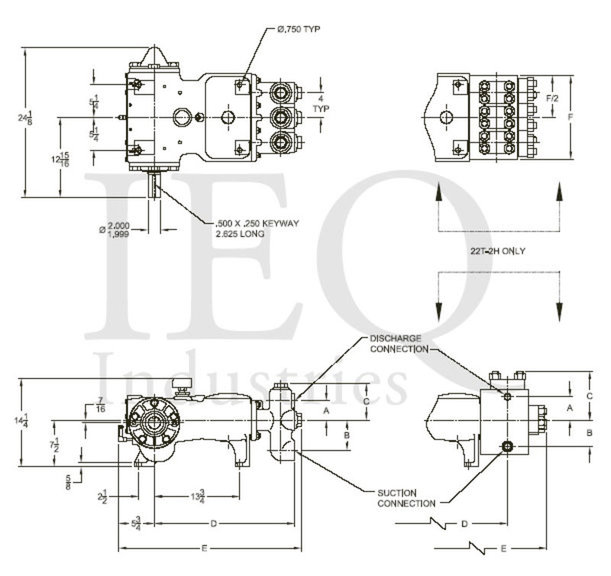

T225-M (22T-2M), Triplex, Plunger Pump
Mouse-over to Enlarge T225-M (22T-2M), Triplex, Plunger Pump

Hover over Power Curves to reveal RPM and GPM

PumpEnglish Units50 RPM200 RPM350 RPM465 RPM
Plunger Dia. In.Plunger Area Sq. In.BPD per RPMGPM per RPMMax Press. PSIBPDGPMBPDGPMBPDGPMBPDGPM
T225-M
22T-2M
1.7502.40532.4100.0703106012044821484325112133
1.6252.07392.0780.060612301043416127272196628
1.5001.76711.7700.05161443893354106201882324
1.3751.48491.4880.0434171774229895211569220
1.2501.22721.2290.0359207861224674301357217
1.1250.99400.9960.0290256550119963491046314
Power End Features
  • Cast iron power frame
  • Flooded sump, splash distribution lubrication
  • One piece plungers
  • Flooded sump, splash distribution lubrication
  • Cast iron connecting rods
  • Alloy steel crosshead pins
  • Bronze bearing crosshead pin bushings
  • Rated rod load is 2550 lbs.
Fluid End Features
  • Threaded type glands and integral stuffing boxes
  • Plungers - Solid Ceramic, or Tungsten Coated
  • Threaded suction and discharge connections
