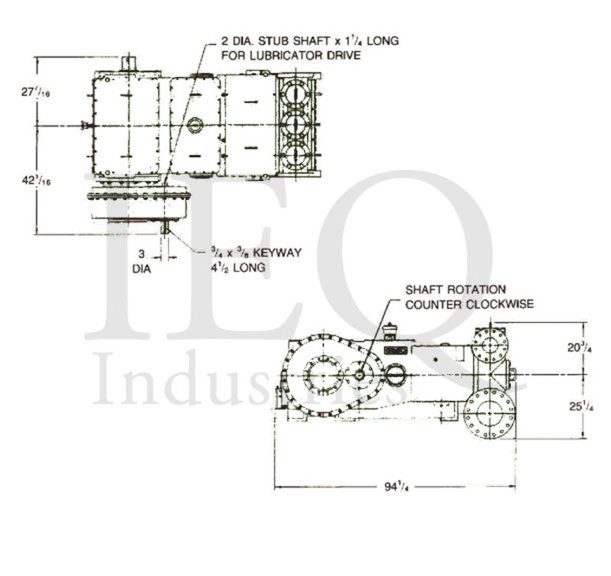

Gaso, T450-4, Triplex, Plunger Pump
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | triplex |
| Minimum Plunger Diameter: | 3¼" |
| Maximum Plunger Diameter: | 4" |
| Stroke length: | 8" |
| Maximum Working Pressure: | 3,135 PSI |
| Rod/Piston Load: | 26000lb |
| Gallons per Minute: | 339.0 |
| Barrels per Day: | 11623 |
| Brake Horse Power: | 455.0 |
Mouse-over to Enlarge
- Pump Curves
- Performance Data Table
- Features/benefits not available.
Hover over Power Curves to reveal RPM and GPM
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 260 RPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| T450-4 | 4.000 | 12.5664 | 44.763 | 1.3056 | 2069 | 2238 | 65 | 6715 | 196 | 11191 | 326 | 11638 | 339 |
| 3.875 | 11.7932 | 42.009 | 1.2253 | 2205 | 2101 | 61 | 6301 | 184 | 10502 | 306 | 10922 | 319 | |
| 3.750 | 11.0447 | 39.343 | 1.1475 | 2354 | 1967 | 57 | 5901 | 172 | 9836 | 287 | 10229 | 298 | |
| 3.625 | 10.3206 | 36.764 | 1.0723 | 2519 | 1838 | 54 | 5515 | 161 | 9191 | 268 | 9559 | 279 | |
| 3.500 | 9.6211 | 34.272 | 0.9996 | 2702 | 1714 | 50 | 5141 | 150 | 8568 | 250 | 8911 | 260 | |
| 3.375 | 8.9462 | 31.868 | 0.9295 | 2906 | 1593 | 46 | 4780 | 139 | 7967 | 232 | 8286 | 242 | |
| 3.250 | 8.2958 | 29.551 | 0.8619 | 3134 | 1478 | 43 | 4433 | 129 | 7388 | 215 | 7683 | 224 | |
