Wheatley, HP200-M, Quintuplex, Plunger Pump
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 1¾" |
| Maximum Plunger Diameter: | 2½" |
| Stroke length: | 4½" |
| Maximum Working Pressure: | 3,600 PSI |
| Rod/Piston Load: | 8800lb |
| Gallons per Minute: | 185.0 |
| Barrels per Day: | 6343 |
| Brake Horse Power: | 216.0 |

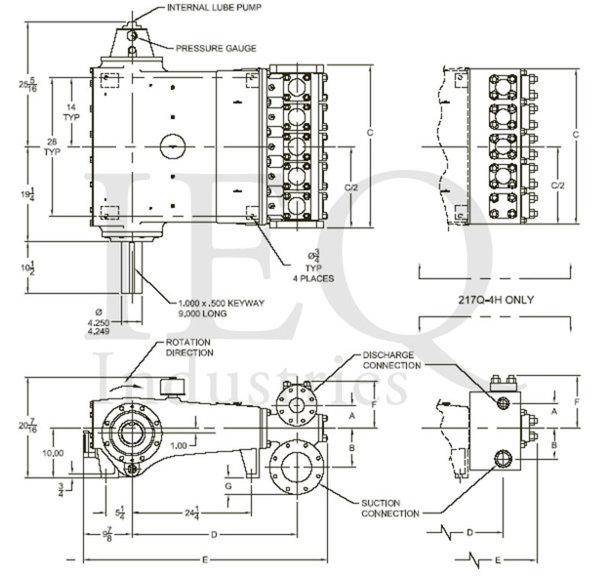

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 200 RPM | 350 RPM | 490 RPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| HP200-M | 2.500 | 4.9087 | 16.393 | 0.4781 | 1793 | 819.6 | 23.91 | 3279 | 95.62 | 5737 | 167.3 | 8032 | 234.3 |
| 2.375 | 4.4301 | 14.795 | 0.4315 | 1986 | 739.7 | 21.58 | 2959 | 86.3 | 5178 | 151.0 | 7249 | 211.4 | |
| 2.250 | 3.9761 | 13.278 | 0.3873 | 2213 | 663.9 | 19.36 | 2656 | 77.46 | 4647 | 135.5 | 6506 | 189.8 | |
| 2.125 | 3.5466 | 11.844 | 0.3454 | 2481 | 592.2 | 17.27 | 2369 | 69.09 | 4145 | 120.9 | 5803 | 169.3 | |
| 2.000 | 3.1416 | 10.491 | 0.3060 | 2801 | 524.6 | 15.3 | 2098 | 61.2 | 3672 | 107.1 | 5141 | 149.9 | |
| 1.875 | 2.7612 | 9.221 | 0.2689 | 3187 | 461.0 | 13.45 | 1844 | 53.79 | 3227 | 94.13 | 4518 | 131.8 | |
| 1.750 | 2.4053 | 8.032 | 0.2343 | 3659 | 401.6 | 11.71 | 1606 | 46.86 | 2811 | 82.0 | 3936 | 114.8 | |
- Cast iron power frame
- Ductile Iron Crankshaft
- Heavy-duty, Tapered Roller Crankshaft Bearings
- Precision Type, Aluminum Alloy Crankpin Bearings
- Stainless Steel Extension Rods
- Internal Pressure Lubrication
- Ductile Iron Connecting Rods
- Alloy Steel Crosshead Pins
- Bronze Bearing Crosshead Pin Bushings
- Cast Iron Crossheads with upper/lower oil grooves
- Rated Rod Load is 8800 lbs.
- Bolted Valve Covers
- Integral Stuffing Boxes & Glands
