Wheatley, HP200-MS (217Q-4H), Quintuplex, Plunger Pump
- 217 horsepower 4 1/2" stroke horizontal quintuplex single acting plunger pump
- Available in three end materials
- Pump speeds up to 390 RPM
- Multiple accessory gear reduction unit ratios
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 1¼" |
| Maximum Plunger Diameter: | 1⅝" |
| Stroke length: | 4½" |
| Maximum Working Pressure: | 6,000 PSI |
| Rod/Piston Load: | 8800lb |
| Gallons per Minute: | 78.8 |
| Barrels per Day: | 2702 |
| Brake Horse Power: | 217.0 |

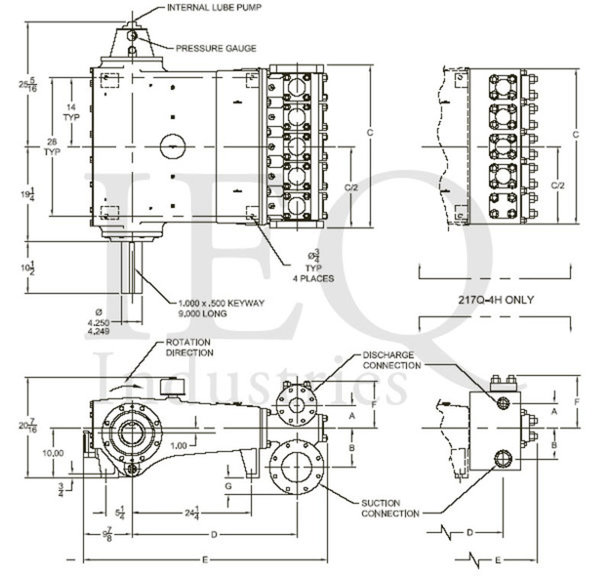

Mouse-over to Enlarge
| Pump | English Units | 50 RPM | 200 RPM | 350 RPM | 490 RPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| HP200-MS 217Q-4H | 1.625 | 2.0739 | 6.926 | 0.2020 | 4243 | 346.3 | 10.1 | 1385 | 40.4 | 2424 | 70.7 | 3394 | 98.98 |
| 1.500 | 1.7671 | 5.901 | 0.1721 | 4980 | 295.1 | 8.606 | 1180 | 34.42 | 2065 | 60.24 | 2892 | 84.34 | |
| 1.375 | 1.4849 | 4.959 | 0.1446 | 5926 | 247.9 | 7.232 | 991.8 | 28.93 | 1736 | 50.62 | 2430 | 70.87 | |
| 1.250 | 1.2272 | 4.098 | 0.1195 | 7171 | 204.9 | 5.977 | 819.6 | 23.91 | 1434 | 41.84 | 2008 | 58.57 | |
- Cast iron power frame
- Ductile Iron Crankshaft
- Heavy-duty, Tapered Roller Crankshaft Bearings
- Precision Type, Aluminum Alloy Crankpin Bearings
- Stainless Steel Extension Rods
- Internal Pressure Lubrication
- Ductile Iron Connecting Rods
- Alloy Steel Crosshead Pins
- Bronze Bearing Crosshead Pin Bushings
- Cast Iron Crossheads with upper/lower oil grooves
- Rated Rod Load is 8800 lbs.
- Bolted Valve Covers
- Integral Stuffing Boxes & Glands
